Page 60 - Alfa International 2023 Catalog

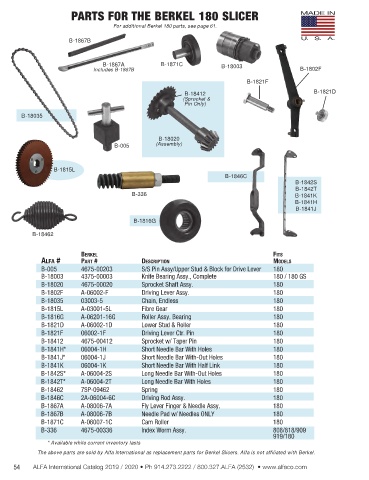

PARTS FOR THE BERKEL 180 SLICER

For additional Berkel 180 parts, see page 61.

B-1867B

B-1867A B-1871C B-18003
Includes B-1867B B-1802F
B-1821F

B-18412 B-1821D
(Sprocket &
Pin Only)
B-18035

B-18020
B-005 (Assembly)

B-1815L
B-1846C
B-1842S
B-1842T
B-336 B-1841K
B-1841H
B-1841J

B-1816G
B-18462

Berkel Fits
AlFA # PArt # DescriPtion MoDels
B-005 4675-00203 S/S Pin Assy/Upper Stud & Block for Drive Lever 180
B-18003 4375-00003 Knife Bearing Assy., Complete 180 / 180 GS
B-18020 4675-00020 Sprocket Shaft Assy. 180
B-1802F A-06002-F Driving Lever Assy. 180
B-18035 03003-5 Chain, Endless 180
B-1815L A-03001-5L Fibre Gear 180
B-1816G A-06201-16G Roller Assy. Bearing 180
B-1821D A-06002-1D Lower Stud & Roller 180
B-1821F 06002-1F Driving Lever Ctr. Pin 180
B-18412 4675-00412 Sprocket w/ Taper Pin 180
B-1841H* 06004-1H Short Needle Bar With Holes 180
B-1841J* 06004-1J Short Needle Bar With-Out Holes 180
B-1841K 06004-1K Short Needle Bar With Half Link 180
B-1842S* A-06004-2S Long Needle Bar With-Out Holes 180
B-1842T* A-06004-2T Long Needle Bar With Holes 180
B-18462 7SP-09462 Spring 180
B-1846C 2A-06004-6C Driving Rod Assy. 180
B-1867A A-08006-7A Fly Lever Finger & Needle Assy. 180
B-1867B A-08006-7B Needle Pad w/ Needles ONLY 180
B-1871C A-06007-1C Cam Roller 180
B-336 4675-00336 Index Worm Assy. 808/818/909
919/180
* Available while current inventory lasts
The above parts are sold by Alfa International as replacement parts for Berkel Slicers. Alfa is not affiliated with Berkel.
