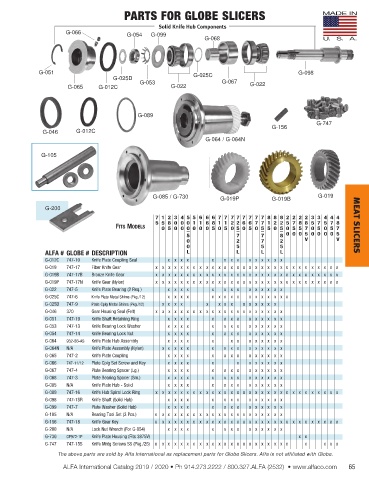

PARTS FOR GLOBE SLICERS

Solid Knife Hub Components
G-066 G-054 G-099
G-068

G-051 G-025C G-098
G-025D
G-053 G-067 G-022
G-065 G-012C G-022

G-089
G-747
G-156
G-046 G-012C
G-064 / G-064N

G-105

G-085 / G-730 G-019P G-019B G-019
G-200
7 1 2 3 4 5 5 6 6 6 7 7 7 7 7 7 7 7 8 8 8 2 2 2 2 3 3 4 4 4
5 5 8 0 0 0 1 1 6 8 1 1 2 2 6 6 7 7 1 2 2 5 7 8 8 5 7 5 7 8
FITS MODELS 0 5 0 0 0 0 0 0 5 0 5 0 5 0 5 0 5 5 0 5 0 5 5 7 0 5 0 5 7 MEAT SLICERS
– – – –
5 7 7 8 0 0 0 5 0 0 0 0 5
0 2 7 2 V V
0 5 5 5
ALFA # GLOBE # DESCRIPTION L L L L
G-012C 747-10 Knife Plate Coupling Seal x x x x x x x x x x x x x x
G-019 747-17 Fiber Knife Gear x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x
G-019B 747-17B Bronze Knife Gear x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x
G-019P 747-17N Knife Gear (Nylon) x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x
G-022 747-5 Knife Plate Bearing (2 Req.) x x x x x x x x x x x x x x
G-025C 747-6 Knife Plate Metal Shims (Pkg./12) x x x x x x x x x x x x x x x x
G-025D 747-9 Plate Cplg Metal Shims (Pkg./12) x x x x x x x x x x x x x x
G-046 370 Gear Housing Seal (Felt) x x x x x x x x x x x x x x x x x x x x x
G-051 747-19 Knife Shaft Retaining Ring x x x x x x x x x x x x x x
G-053 747-13 Knife Bearing Lock Washer x x x x x x x x x x x x x x
G-054 747-14 Knife Bearing Lock Nut x x x x x x x x x x x x x x
G-064 932-BB-AS Knife Plate Hub Assembly x x x x x x x x x x x x x
G-064N N/A Knife Plate Assembly (Nylon) x x x x x x x x x x x x x x x
G-065 747-2 Knife Plate Coupling x x x x x x x x x x x x x x
G-066 747-11/12 Plate Cplg Set Screw and Key x x x x x x x x x x x x
G-067 747-4 Plate Bearing Spacer (Lg.) x x x x x x x x x x x x x x
G-068 747-3 Plate Bearing Spacer (Sm.) x x x x x x x x x x x x x x
G-085 N/A Knife Plate Hub - Solid x x x x x x x x x x x x x x
G-089 747-16 Knife Hub Spiral Lock Ring x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x
G-098 747-1SR Knife Shaft (Solid Hub) x x x x x x x x x x x x x x
G-099 747-7 Plate Washer (Solid Hub) x x x x x x x x x x x x x x
G-105 N/A Bearing Tool Set (3 Pcs.) x x x x x x x x x x x x x x x x x x x x x
G-156 747-18 Knife Gear Key x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x
G-200 N/A Lock Nut Wrench (For G-054) x x x x x x x x x x x x x x
G-730 GP972-1P Knife Plate Housing (Fits 3875V) x x
G-747 747-15S Knife Mntg Screws SS (Pkg./25) x x x x x x x x x x x x x x x x x x x x x x x x x x
The above parts are sold by Alfa International as replacement parts for Globe Slicers. Alfa is not affiliated with Globe.
