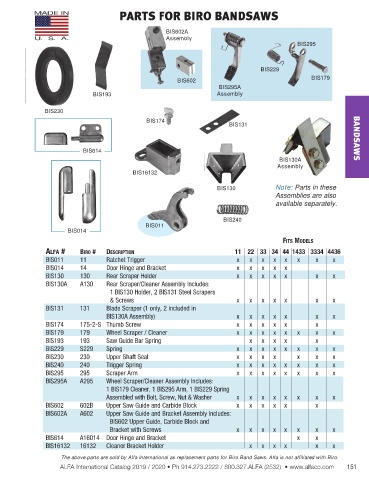

Page 157 - Alfa International 2023 Catalog

PARTS FOR BIRO BANDSAWS

BIS602A
Assembly
BIS295

BIS229
BIS179
BIS602
BIS295A
BIS193 Assembly

BIS230
BIS174
BIS131

BIS614 BANDSAWS
BIS130A
Assembly
BIS16132

BIS130 Note: Parts in these
Assemblies are also
available separately.

BIS240
BIS011
BIS014
fITS ModelS
AlfA # BIro # deScrIpTIon 11 22 33 34 44 1433 3334 4436
BIS011 11 Ratchet Trigger x x x x x x x x
BIS014 14 Door Hinge and Bracket x x x x x
BIS130 130 Rear Scraper Holder x x x x x x x
BIS130A A130 Rear Scraper/Cleaner Assembly Includes:
1 BIS130 Holder, 2 BIS131 Steel Scrapers
& Screws x x x x x x x
BIS131 131 Blade Scraper (1 only, 2 included in
BIS130A Assembly) x x x x x x x
BIS174 175-2-S Thumb Screw x x x x x x
BIS179 179 Wheel Scraper / Cleaner x x x x x x x x
BIS193 193 Saw Guide Bar Spring x x x x x
BIS229 S229 Spring x x x x x x x x
BIS230 230 Upper Shaft Seal x x x x x x x
BIS240 240 Trigger Spring x x x x x x x x
BIS295 295 Scraper Arm x x x x x x x x
BIS295A A295 Wheel Scraper/Cleaner Assembly Includes:
1 BIS179 Cleaner, 1 BIS295 Arm, 1 BIS229 Spring
Assembled with Bolt, Screw, Nut & Washer x x x x x x x x
BIS602 602B Upper Saw Guide and Carbide Block x x x x x x
BIS602A A602 Upper Saw Guide and Bracket Assembly Includes:
BIS602 Upper Guide, Carbide Block and
Bracket with Screws x x x x x x x x
BIS614 A16014 Door Hinge and Bracket x x
BIS16132 16132 Cleaner Bracket Holder x x x x x x

The above parts are sold by Alfa International as replacement parts for Biro Band Saws. Alfa is not affiliated with Biro.
