Page 160 - Alfa International 2023 Catalog
P. 160

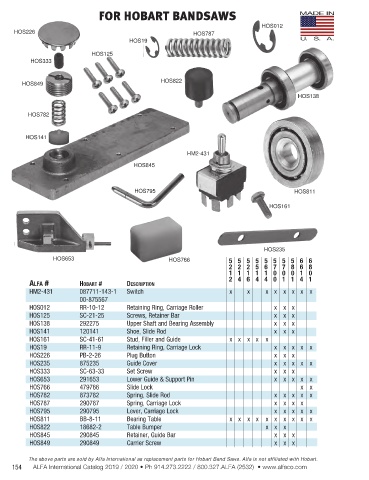

FOR HOBART BANDSAWS
HOS012
HOS226 HOS787
HOS19
HOS125
HOS333
HOS822
HOS849
HOS138
HOS782
HOS141
HM2-431
HOS845
HOS795 HOS811
HOS161
HOS235
HOS653 HOS766 5 5 5 5 5 5 5 5 6 6
2 2 2 5 6 7 7 8 6 8
1 1 1 1 1 0 0 0 1 0
2 4 6 4 4 0 1 1 4 1
AlfA # hoBArT # deScrIpTIon
HM2-431 087711-143-1 Switch x x x x x x x x
00-875567
HOS012 RR-10-12 Retaining Ring, Carriage Roller x x x
HOS125 SC-21-25 Screws, Retainer Bar x x x
HOS138 292275 Upper Shaft and Bearing Assembly x x x
HOS141 120141 Shoe, Slide Rod x x x
HOS161 SC-41-61 Stud, Filler and Guide x x x x x
HOS19 RR-11-9 Retaining Ring, Carriage Lock x x x x x
HOS226 PB-2-26 Plug Button x x x
HOS235 875235 Guide Cover x x x x x
HOS333 SC-63-33 Set Screw x x x
HOS653 291653 Lower Guide & Support Pin x x x x x
HOS766 479766 Slide Lock x x
HOS782 873782 Spring, Slide Rod x x x x x
HOS787 290787 Spring, Carriage Lock x x x x
HOS795 290795 Lever, Carriage Lock x x x x x
HOS811 BB-8-11 Bearing Table x x x x x x x x x x
HOS822 18682-2 Table Bumper x x x
HOS845 290845 Retainer, Guide Bar x x x
HOS849 290849 Carrier Screw x x x
The above parts are sold by Alfa International as replacement parts for Hobart Band Saws. Alfa is not affiliated with Hobart.
