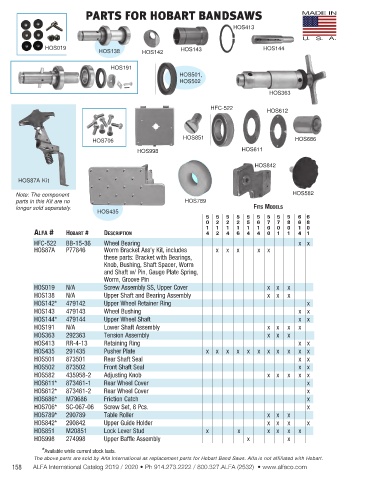

PARTS FOR HOBART BANDSAWS

HOS413

HOS019 HOS143 HOS144
HOS138 HOS142

HOS191
HOS501,
HOS502
HOS363

HFC-522
HOS612

HOS851 HOS686
HOS706
HOS998 HOS611

HOS842

HOS87A Kit

Note: The component HOS582
parts in this Kit are no HOS789
longer sold separately. fITS ModelS
HOS435
5 5 5 5 5 5 5 5 5 6 6
0 2 2 2 5 6 7 7 8 6 8
1 1 1 1 1 1 0 0 0 1 0
AlfA # hoBArT # deScrIpTIon 4 2 4 6 4 4 0 1 1 4 1
HFC-522 BB-15-36 Wheel Bearing x x
HOS87A P77846 Worm Bracket Ass'y Kit, includes x x x x x
these parts: Bracket with Bearings,
Knob, Bushing, Shaft Spacer, Worm
and Shaft w/ Pin, Gauge Plate Spring,
Worm, Groove Pin
HOS019 N/A Screw Assembly SS, Upper Cover x x x
HOS138 N/A Upper Shaft and Bearing Assembly x x x
HOS142* 479142 Upper Wheel Retainer Ring x
HOS143 479143 Wheel Bushing x x
HOS144* 479144 Upper Wheel Shaft x x
HOS191 N/A Lower Shaft Assembly x x x x
HOS363 292363 Tension Assembly x x x
HOS413 RR-4-13 Retaining Ring x x
HOS435 291435 Pusher Plate x x x x x x x x x x x
HOS501 873501 Rear Shaft Seal x x
HOS502 873502 Front Shaft Seal x x
HOS582 435958-2 Adjusting Knob x x x x x
HOS611* 873461-1 Rear Wheel Cover x
HOS612* 873461-2 Rear Wheel Cover x
HOS686* M79686 Friction Catch x
HOS706* SC-067-06 Screw Set, 8 Pcs. x
HOS789* 290789 Table Roller x x x
HOS842* 290842 Upper Guide Holder x x x x
HOS851 M20851 Lock Lever Stud x x x x x x
HOS998 274998 Upper Baffle Assembly x x

*Available while current stock lasts.
The above parts are sold by Alfa International as replacement parts for Hobart Band Saws. Alfa is not affiliated with Hobart.
