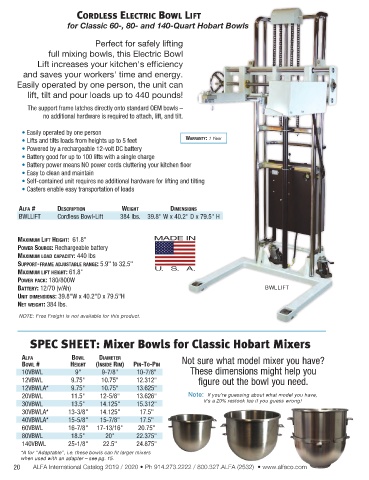

Page 26 - Alfa International 2023 Catalog
P. 26
Cordless eleCtriC Bowl lift
for Classic 60-, 80- and 140-Quart Hobart Bowls
Perfect for safely lifting
full mixing bowls, this Electric Bowl
Lift increases your kitchen's efficiency
and saves your workers' time and energy.
Easily operated by one person, the unit can
lift, tilt and pour loads up to 440 pounds!
The support frame latches directly onto standard OEM bowls –
no additional hardware is required to attach, lift, and tilt.
• Easily operated by one person
• Lifts and tilts loads from heights up to 5 feet WaRRaNTy: 1 Year
• Powered by a rechargeable 12-volt DC battery
• Battery good for up to 100 lifts with a single charge
• Battery power means NO power cords cluttering your kitchen floor
• Easy to clean and maintain
• Self-contained unit requires no additional hardware for lifting and tilting
• Casters enable easy transportation of loads
alfa # DescRipTioN WeiGHT DiMeNsioNs
BWLLIFT Cordless Bowl-Lift 384 lbs. 39.8" W x 40.2" D x 79.5" H
MaxiMuM lifT HeiGHT: 61.8"
poWeR souRce: Rechargeable battery
MaxiMuM loaD capaciTy: 440 lbs
suppoRT-fRaMe aDjusTable RaNGe: 5.9" to 32.5"
MaxiMuM lifT HeiGHT: 61.8"
poWeR pack: 180/800W
baTTeRy: 12/70 (v/Ah) BWLLIFT
uNiT DiMeNsioNs: 39.8"W x 40.2"D x 79.5"H
NeT WeiGHT: 384 lbs.
NOTE: Free Freight is not available for this product.
SPEC SHEET: Mixer Bowls for Classic Hobart Mixers
alfa boWl DiaMeTeR Not sure what model mixer you have?
boWl # HeiGHT (iNsiDe RiM) piN-To-piN
10VBWL 9" 9-7/8" 10-7/8" These dimensions might help you
12VBWL 9.75" 10.75" 12.312" figure out the bowl you need.
12VBWLA* 9.75" 10.75" 13.625"
20VBWL 11.5" 12-5/8" 13.626" Note: If you're guessing about what model you have,
30VBWL 13.5" 14.125" 15.312" it's a 20% restock fee if you guess wrong!
30VBWLA* 13-3/8" 14.125" 17.5"
40VBWLA* 15-5/8" 15-7/8" 17.5"
60VBWL 16-7/8" 17-13/16" 20.75"
80VBWL 18.5" 20" 22.375"
140VBWL 25-1/8" 22.5" 24.875"
*A for “Adaptable”, i.e. these bowls can fit larger mixers
when used with an adapter – see pg. 15.
