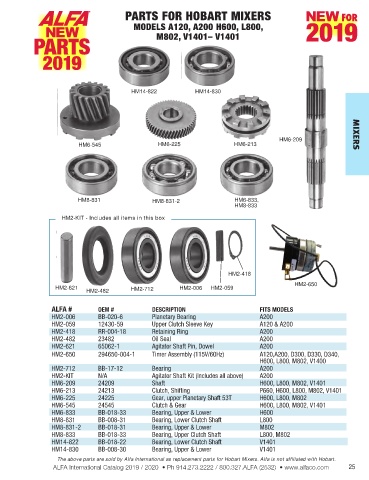

Page 31 - Alfa International 2023 Catalog

PARTS FOR HOBART MIXERS

MODELS A120, A200 H600, L800,
M802, V1401– V1401

HM14-822 HM14-830

HM6-209 MIXERS
HM6-545 HM6-225 HM6-213

HM8-831 HM8-831-2 HM6-833,
HM8-833
HM2-KIT - Includes all items in this box

HM2-418

HM2-650
HM2-621 HM2-712 HM2-006 HM2-059
HM2-482
alfa # oeM # DescRipTioN fiTs MoDels
HM2-006 BB-020-6 Planetary Bearing A200
HM2-059 12430-59 Upper Clutch Sleeve Key A120 & A200
HM2-418 RR-004-18 Retaining Ring A200
HM2-482 23482 Oil Seal A200
HM2-621 65062-1 Agitator Shaft Pin, Dowel A200
HM2-650 294650-004-1 Timer Assembly (115V/60Hz) A120,A200, D300, D330, D340,
H600, L800, M802, V1400
HM2-712 BB-17-12 Bearing A200
HM2-KIT N/A Agitator Shaft Kit (Includes all above) A200
HM6-209 24209 Shaft H600, L800, M802, V1401
HM6-213 24213 Clutch, Shifting P660, H600, L800, M802, V1401
HM6-225 24225 Gear, upper Planetary Shaft 53T H600, L800, M802
HM6-545 24545 Clutch & Gear H600, L800, M802, V1401
HM6-833 BB-018-33 Bearing, Upper & Lower H600
HM8-831 BB-008-31 Bearing, Lower Clutch Shaft L800
HM8-831-2 BB-018-31 Bearing, Upper & Lower M802
HM8-833 BB-018-33 Bearing, Upper Clutch Shaft L800, M802
HM14-822 BB-018-22 Bearing, Lower Clutch Shaft V1401
HM14-830 BB-008-30 Bearing, Upper & Lower V1401
The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
ALFA International Catalog 2019 / 2020 • Ph 914.273.2222 / 800.327.ALFA (2532) • www.alfaco.com 25
