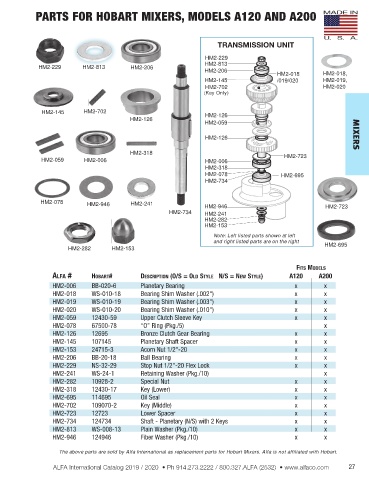

Page 33 - Alfa International 2023 Catalog

PARTS FOR HOBART MIXERS, MODELS A120 AND A200

TRANSMISSION UNIT
HM2-229
HM2-813
HM2-229 HM2-813 HM2-206
HM2-206
HM2-018 HM2-018,
HM2-145 /019/020 HM2-019,
HM2-702 HM2-020
(Key Only)

HM2-145 HM2-702 HM2-126
HM2-126
HM2-059

HM2-126 MIXERS

HM2-318 HM2-723
HM2-059 HM2-006 HM2-006
HM2-318
HM2-078 HM2-695
HM2-734

HM2-078 HM2-946 HM2-241 HM2-946 HM2-723
HM2-734 HM2-241
HM2-282
HM2-153
Note: Left listed parts shown at left
and right listed parts are on the right
HM2-282 HM2-153 HM2-695

fiTs MoDels
alfa # HobaRT# DescRipTioN (o/s = olD sTyle N/s = NeW sTyle) a120 a200
HM2-006 BB-020-6 Planetary Bearing x x
HM2-018 WS-010-18 Bearing Shim Washer (.002") x x
HM2-019 WS-010-19 Bearing Shim Washer (.003") x x
HM2-020 WS-010-20 Bearing Shim Washer (.010") x x
HM2-059 12430-59 Upper Clutch Sleeve Key x x
HM2-078 67500-78 “O” Ring (Pkg./5) x
HM2-126 12695 Bronze Clutch Gear Bearing x x
HM2-145 107145 Planetary Shaft Spacer x x
HM2-153 24715-3 Acorn Nut 1/2"-20 x x
HM2-206 BB-20-18 Ball Bearing x x
HM2-229 NS-32-29 Stop Nut 1/2"-20 Flex Lock x x
HM2-241 WS-24-1 Retaining Washer (Pkg./10) x
HM2-282 10928-2 Special Nut x x
HM2-318 12430-17 Key (Lower) x x
HM2-695 114695 Oil Seal x x
HM2-702 109070-2 Key (Middle) x x
HM2-723 12723 Lower Spacer x x
HM2-734 124734 Shaft - Planetary (N/S) with 2 Keys x x
HM2-813 WS-008-13 Plain Washer (Pkg./10) x x
HM2-946 124946 Fiber Washer (Pkg./10) x x

The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
ALFA International Catalog 2019 / 2020 • Ph 914.273.2222 / 800.327.ALFA (2532) • www.alfaco.com 27
