D300, D330, D340, H600, M802, V1401

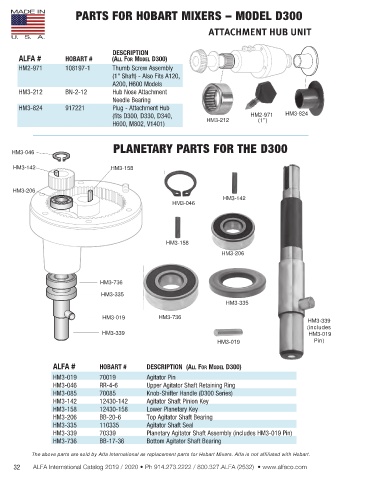

PARTS FOR HOBART MIXERS – MODEL D300
ATTACHMENT HUB UNIT
DescRipTioN
alfa # HobaRT # (all foR MoDel D300)
HM2-971 108197-1 Thumb Screw Assembly
(1" Shaft) - Also Fits A120,
A200, H600 Models
HM3-212 BN-2-12 Hub Nose Attachment
Needle Bearing
HM3-824 917221 Plug - Attachment Hub
(fits D300, D330, D340, HM3-212 HM2-971 HM3-824
H600, M802, V1401) (1")
PLANETARY PARTS FOR THE D300
HM3-046
HM3-142 HM3-158
HM3-206
HM3-142
HM3-046
HM3-158
HM3-206
HM3-736
HM3-335
HM3-335
HM3-019 HM3-736
HM3-339
(includes
HM3-339 HM3-019
HM3-019 Pin)
alfa # HobaRT # DescRipTioN (all foR MoDel D300)
HM3-019 70019 Agitator Pin
HM3-046 RR-4-6 Upper Agitator Shaft Retaining Ring
HM3-085 70085 Knob-Shifter Handle (D300 Series)
HM3-142 12430-142 Agitator Shaft Pinion Key
HM3-158 12430-158 Lower Planetary Key
HM3-206 BB-20-6 Top Agitator Shaft Bearing
HM3-335 110335 Agitator Shaft Seal
HM3-339 70339 Planetary Agitator Shaft Assembly (includes HM3-019 Pin)
HM3-736 BB-17-36 Bottom Agitator Shaft Bearing
The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
