Page 40 - Alfa International 2023 Catalog
P. 40

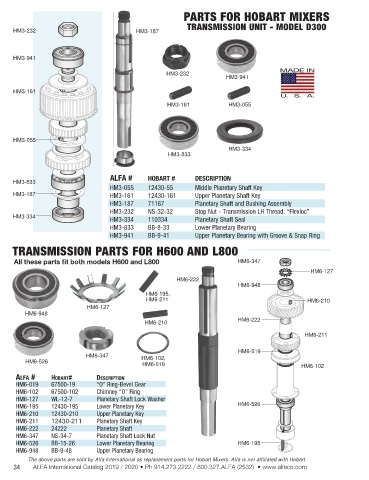

PARTS FOR HOBART MIXERS
TRANSMISSION UNIT - MODEL D300
HM3-232 HM3-187
HM3-941
HM3-232
HM3-941
HM3-161
HM3-161 HM3-055
HM3-055
HM3-334
HM3-833
alfa # HobaRT # DescRipTioN
HM3-833
HM3-055 12430-55 Middle Planetary Shaft Key
HM3-187 HM3-161 12430-161 Upper Planetary Shaft Key
HM3-187 71187 Planetary Shaft and Bushing Assembly
HM3-232 NS-32-32 Stop Nut - Transmission LH Thread. “Flexloc”
HM3-334
HM3-334 110334 Planetary Shaft Seal
HM3-833 BB-8-33 Lower Planetary Bearing
HM3-941 BB-9-41 Upper Planetary Bearing with Groove & Snap Ring
TRANSMISSION PARTS FOR H600 AND L800
All these parts fit both models H600 and L800 HM6-347
HM6-127
HM6-222
HM6-948
HM6-195,
HM6-211 HM6-210
HM6-127
HM6-948
HM6-222
HM6-210
HM6-211
HM6-019
HM6-347 HM6-102,
HM6-526 HM6-019 HM6-102
alfa # HobaRT# DescRipTioN
HM6-019 67500-19 “O” Ring-Bevel Gear
HM6-102 67500-102 Chimney “O” Ring
HM6-127 WL-12-7 Planetary Shaft Lock Washer
HM6-195 12430-195 Lower Planetary Key HM6-526
HM6-210 12430-210 Upper Planetary Key
HM6-211 12430-211 Planetary Shaft Key
HM6-222 24222 Planetary Shaft
HM6-347 NS-34-7 Planetary Shaft Lock Nut
HM6-526 BB-15-26 Lower Planetary Bearing HM6-195
HM6-948 BB-9-48 Upper Planetary Bearing
The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
