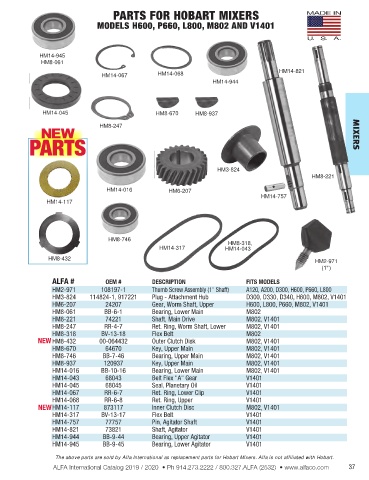

PARTS FOR HOBART MIXERS

MODELS H600, P660, L800, M802 AND V1401

HM14-945
HM8-061

HM14-067 HM14-068 HM14-821
HM14-944

HM14-045 HM8-670 HM8-937

HM8-247 MIXERS

HM3-824
HM8-221
HM14-016 HM6-207
HM14-757
HM14-117

HM8-746
HM8-318,
HM14-317 HM14-043
HM8-432 HM2-971
(1")

alfa # oeM # DescRipTioN fiTs MoDels
HM2-971 108197-1 Thumb Screw Assembly (1" Shaft) A120, A200, D300, H600, P660, L800
HM3-824 114824-1, 917221 Plug - Attachment Hub D300, D330, D340, H600, M802, V1401
HM6-207 24207 Gear, Worm Shaft, Upper H600, L800, P660, M802, V1401
HM8-061 BB-6-1 Bearing, Lower Main M802
HM8-221 74221 Shaft, Main Drive M802, V1401
HM8-247 RR-4-7 Ret. Ring, Worm Shaft, Lower M802, V1401
HM8-318 BV-13-18 Flex Belt M802
NEW HM8-432 00-064432 Outer Clutch Disk M802, V1401
HM8-670 64670 Key, Upper Main M802, V1401
HM8-746 BB-7-46 Bearing, Upper Main M802, V1401
HM8-937 120937 Key, Upper Main M802, V1401
HM14-016 BB-10-16 Bearing, Lower Main M802, V1401
HM14-043 68043 Belt Flex "A" Gear V1401
HM14-045 68045 Seal, Planetary Oil V1401
HM14-067 RR-6-7 Ret. Ring, Lower Clip V1401
HM14-068 RR-6-8 Ret. Ring, Upper V1401
NEW HM14-117 873117 Inner Clutch Disc M802, V1401
HM14-317 BV-13-17 Flex Belt V1401
HM14-757 77757 Pin, Agitator Shaft V1401
HM14-821 73821 Shaft, Agitator V1401
HM14-944 BB-9-44 Bearing, Upper Agitator V1401
HM14-945 BB-9-45 Bearing, Lower Agitator V1401

The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
