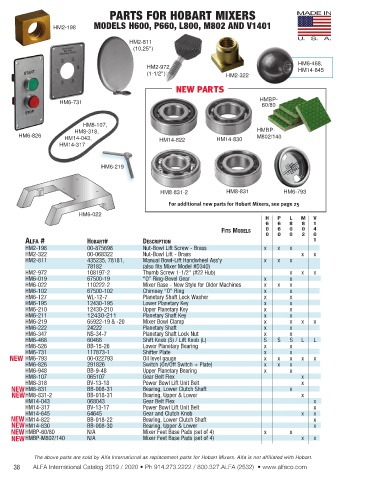

PARTS FOR HOBART MIXERS

HM2-198 MODELS H600, P660, L800, M802 AND V1401

HM2-811
(10.25")
HM6-468,
HM2-972 HM14-645
(1-1/2") HM2-322

NEW PARTS

HM6-731 HMBP-
60/80

HM8-107,
HM8-318, HMBP-
HM6-826 HM14-043, HM14-822 HM14-830 M802/140
HM14-317

HM6-219

HM8-831-2 HM8-831 HM6-793
For additional new parts for Hobart Mixers, see page 25
HM6-022
H p l M V
6 6 8 8 1
fiTs MoDels 0 6 0 0 4
0 0 0 2 0
alfa # HobaRT# DescRipTioN 1
HM2-198 00-875698 Nut-Bowl Lift Screw - Brass x x x
HM2-322 00-068322 Nut-Bowl Lift - Brass x x
HM2-811 435235, 78181, Manual Bowl-Lift Handwheel Ass'y x x x
78182 (also fits Mixer Model #D340)
HM2-972 108197-2 Thumb Screw 1-1/2" (#22 Hub) x x x
HM6-019 67500-19 “O” Ring-Bevel Gear x x
HM6-022 110222-2 Mixer Base - New Style for Older Machines x x x
HM6-102 67500-102 Chimney “O” Ring x x
HM6-127 WL-12-7 Planetary Shaft Lock Washer x x
HM6-195 12430-195 Lower Planetary Key x x
HM6-210 12430-210 Upper Planetary Key x x
HM6-211 12430-211 Planetary Shaft Key x x
HM6-219 65922-19 & -20 Mixer Bowl Clamp x x x x
HM6-222 24222 Planetary Shaft x x
HM6-347 NS-34-7 Planetary Shaft Lock Nut x x
HM6-468 60468 Shift Knob (S) / Lift Knob (L) S S S L L
HM6-526 BB-15-26 Lower Planetary Bearing x x
HM6-731 117873-1 Shifter Plate x x
NEW HM6-793 00-022793 Oil level gauge x x x x x
HM6-826 291826 Switch (On/Off Switch + Plate) x x x
HM6-948 BB-9-48 Upper Planetary Bearing x x
HM8-107 065107 Gear Belt Flex x
HM8-318 BV-13-18 Power Bowl Lift Unit Belt x
NEW HM8-831 BB-008-31 Bearing, Lower Clutch Shaft x
NEW HM8-831-2 BB-018-31 Bearing, Upper & Lower x
HM14-043 068043 Gear Belt Flex x
HM14-317 BV-13-17 Power Bowl Lift Unit Belt x
HM14-645 64645 Gear and Clutch Knob x x
NEW HM14-822 BB-018-22 Bearing, Lower Clutch Shaft x
NEW HM14-830 BB-008-30 Bearing, Upper & Lower x
NEW HMBP-60/80 N/A Mixer Feet Base Pads (set of 4) x x
NEW HMBP-M802/140 N/A Mixer Feet Base Pads (set of 4) x x

The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
