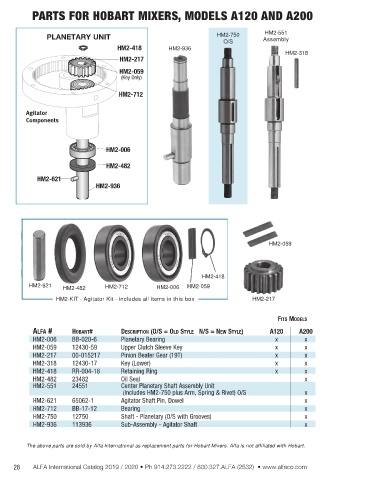

PARTS FOR HOBART MIXERS, MODELS A120 AND A200

HM2-750 HM2-551
PLANETARY UNIT Assembly
O/S
HM2-418 HM2-936
HM2-318
HM2-217
HM2-059
(Key Only)

HM2-712

Agitator
Components

HM2-006

HM2-482

HM2-621
HM2-936

HM2-059

HM2-418
HM2-621 HM2-482 HM2-712 HM2-006 HM2-059
HM2-KIT - Agitator Kit - includes all items in this box HM2-217

fiTs MoDels
alfa # HobaRT# DescRipTioN (o/s = olD sTyle N/s = NeW sTyle) a120 a200
HM2-006 BB-020-6 Planetary Bearing x x
HM2-059 12430-59 Upper Clutch Sleeve Key x x
HM2-217 00-015217 Pinion Beater Gear (19T) x x
HM2-318 12430-17 Key (Lower) x x
HM2-418 RR-004-18 Retaining Ring x x
HM2-482 23482 Oil Seal x
HM2-551 24551 Center Planetary Shaft Assembly Unit
(Includes HM2-750 plus Arm, Spring & Rivet) O/S x
HM2-621 65062-1 Agitator Shaft Pin, Dowel x
HM2-712 BB-17-12 Bearing x
HM2-750 12750 Shaft - Planetary (O/S with Grooves) x
HM2-936 113936 Sub-Assembly - Agitator Shaft x

The above parts are sold by Alfa International as replacement parts for Hobart Mixers. Alfa is not affiliated with Hobart.
