Page 181 - Alfa International 2023 Catalog
P. 181

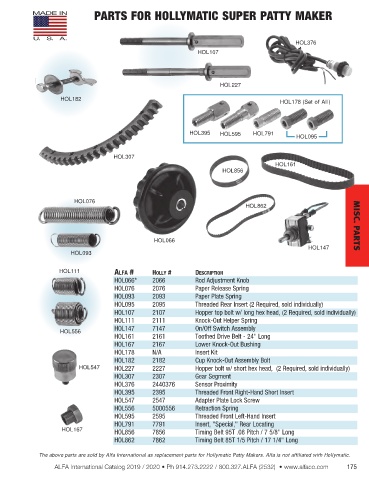

PARTS FOR HOLLYMATIC SUPER PATTY MAKER
HOL376
HOL107
HOL227
HOL182
HOL178 (Set of All)
HOL395 HOL595 HOL791
HOL095
HOL307
HOL161
HOL856
HOL076
HOL862
HOL066 MISC. PARTS
HOL147
HOL093
HOL111 AlfA # hOlly # DescriPtiOn
HOL066* 2066 Rod Adjustment Knob
HOL076 2076 Paper Release Spring
HOL093 2093 Paper Plate Spring
HOL095 2095 Threaded Rear Insert (2 Required, sold individually)
HOL107 2107 Hopper top bolt w/ long hex head, (2 Required, sold individually)
HOL111 2111 Knock-Out Helper Spring
HOL147 7147 On/Off Switch Assembly
HOL556
HOL161 2161 Toothed Drive Belt - 24" Long
HOL167 2167 Lower Knock-Out Bushing
HOL178 N/A Insert Kit
HOL182 2182 Cup Knock-Out Assembly Bolt
HOL547 HOL227 2227 Hopper bolt w/ short hex head, (2 Required, sold individually)
HOL307 2307 Gear Segment
HOL376 2440376 Sensor Proximity
HOL395 2395 Threaded Front Right-Hand Short Insert
HOL547 2547 Adapter Plate Lock Screw
HOL556 5000556 Retraction Spring
HOL595 2595 Threaded Front Left-Hand Insert
HOL791 7791 Insert, "Special," Rear Locating
HOL167 HOL856 7856 Timing Belt 95T .08 Pitch / 7 5/8" Long
HOL862 7862 Timing Belt 85T 1/5 Pitch / 17 1/4" Long
The above parts are sold by Alfa International as replacement parts for Hollymatic Patty Makers. Alfa is not affiliated with Hollymatic.
ALFA International Catalog 2019 / 2020 • Ph 914.273.2222 / 800.327.ALFA (2532) • www.alfaco.com 175
