ALFA
EXCLUSIVE SCHERMER K SERIES STUNNER PARTS
Made In

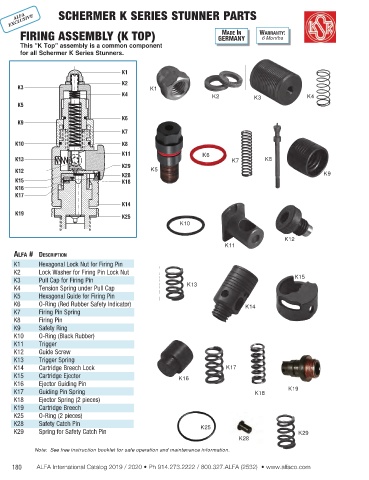

FIRING ASSEMBLY (K TOP) GeRManY WaRRantY:
6 Months
This "K Top" assembly is a common component
for all Schermer K Series Stunners.
K1
K2
K3 K1
K4 K2 K3 K4
K5
K6
K9
K7
K10 K8
K11 K6
K13 K7 K8
K29
K12 K5
K28 K9
K15 K18
K16
K17
K14
K19
K25
K10
K12
K11
alfa # descRIptIon
K1 Hexagonal Lock Nut for Firing Pin
K2 Lock Washer for Firing Pin Lock Nut
K3 Pull Cap for Firing Pin K15
K4 Tension Spring under Pull Cap K13
K5 Hexagonal Guide for Firing Pin
K6 O-Ring (Red Rubber Safety Indicator) K14
K7 Firing Pin Spring
K8 Firing Pin
K9 Safety Ring
K10 O-Ring (Black Rubber)
K11 Trigger
K12 Guide Screw
K13 Trigger Spring
K14 Cartridge Breech Lock K17
K15 Cartridge Ejector K16
K16 Ejector Guiding Pin
K17 Guiding Pin Spring K18 K19
K18 Ejector Spring (2 pieces)
K19 Cartridge Breech
K25 O-Ring (2 pieces)
K28 Safety Catch Pin K25
K29 Spring for Safety Catch Pin K29
K28
Note: See free instruction booklet for safe operation and maintenance information.
