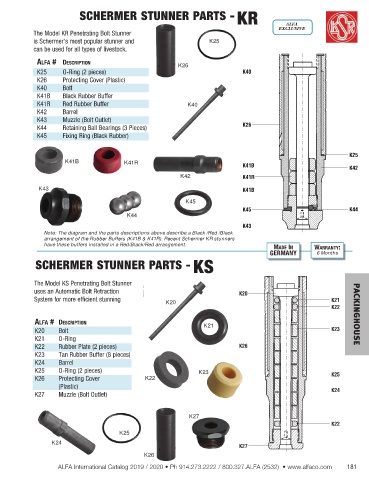

SCHERMER STUNNER PARTS - KR

ALFA
EXCLUSIVE
The Model KR Penetrating Bolt Stunner
is Schermer's most popular stunner and K25
can be used for all types of livestock.

alfa # descRIptIon
K26
K25 O-Ring (2 pieces) K40
K26 Protecting Cover (Plastic)
K40 Bolt
K41B Black Rubber Buffer
K41R Red Rubber Buffer K40
K42 Barrel
K43 Muzzle (Bolt Outlet)
K44 Retaining Ball Bearings (3 Pieces) K26
K45 Fixing Ring (Black Rubber)

K25
K41B K41R
K41B K42

K42 K41R
K43 K41B

K45
K45 K44
K44
K43
Note: The diagram and the parts descriptions above describe a Black /Red /Black
arrangement of the Rubber Buffers (K41B & K41R). Recent Schermer KR stunners
have these buffers installed in a Red/Black/Red arrangement. Made In WaRRantY:
GeRManY 6 Months
SCHERMER STUNNER PARTS - KS

The Model KS Penetrating Bolt Stunner
uses an Automatic Bolt Retraction K20
System for more efficient stunning K20 K21
K22

alfa # descRIptIon K21 PACKINGHOUSE
K20 Bolt K23
K21 O-Ring
K22 Rubber Plate (2 pieces) K26
K23 Tan Rubber Buffer (8 pieces)
K24 Barrel
K25 O-Ring (2 pieces) K23 K25
K26 Protecting Cover K22
(Plastic) K24
K27 Muzzle (Bolt Outlet)

K27
K22
K25
K24
K27
K26
