ALFA

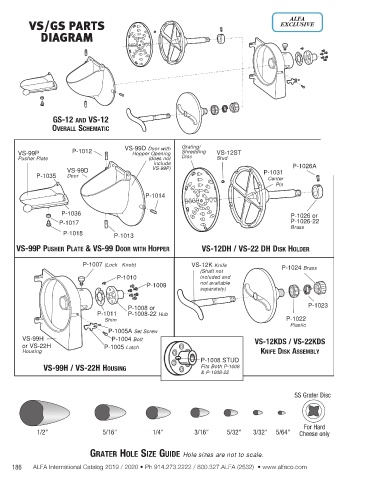

VS/GS PARTS EXCLUSIVE
DIAGRAM

gS-12 AnD VS-12
oVerAll SchemAtic

Shredding
VS-99P P-1012 VS-99D Door with Grating/ VS-12ST
Hopper Opening
Pusher Plate (does not Disc Stud
include P-1026A
VS-99D VS-99P) P-1031
P-1035 Door Center
Pin
P-1014

P-1036 P-1026 or
P-1017 P-1026-22
Brass
P-1018 P-1013

VS-99P PuSher PlAte & VS-99 Door with hoPPer VS-12Dh / VS-22 Dh DiSK holDer

P-1007 (Lock Knob) VS-12K Knife P-1024 Brass
(Shaft not
P-1010 included and
P-1009 not available
separately)

P-1008 or P-1023
P-1011 P-1008-22 Hub
Shim P-1022
Plastic
P-1005A Set Screw
VS-99H P-1004 Bolt VS-12KDS / VS-22KDS
or VS-22H P-1005 Latch
Housing Knife DiSK ASSembly
P-1008 STUD
VS-99h / VS-22h houSing Fits Both P-1008
& P-1008-22

SS Grater Disc

For Hard
1/2” 5/16” 1/4” 3/16” 5/32” 3/32” 5/64” Cheese only

grAter hole Size guiDe Hole sizes are not to scale.
