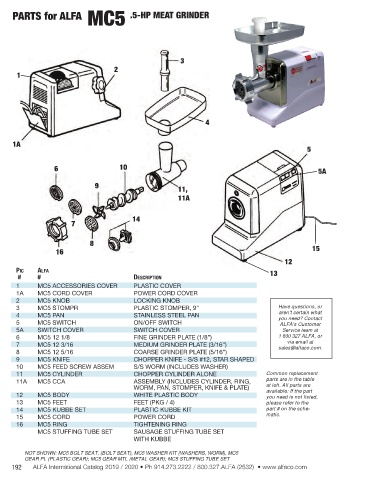

PARTS for ALFA MC5 .5-HP MEAT GRINDER

3
2
1

4

1A
5

6 10 5A

9
11,
11A

14
7

8
16 15
12
Pic AlfA 13
# # DeScriPtion
1 MC5 ACCESSORIES COVER PLASTIC COVER
1A MC5 CORD COVER POWER CORD COVER
2 MC5 KNOB LOCKING KNOB
3 MC5 STOMPR PLASTIC STOMPER, 9” Have questions, or
aren't certain what
4 MC5 PAN STAINLESS STEEL PAN you need? Contact
5 MC5 SWITCH ON/OFF SWITCH ALFA's Customer
5A SWITCH COVER SWITCH COVER Service team at
6 MC5 12 1/8 FINE GRINDER PLATE (1/8”) 1 800 327 ALFA, or
via email at
7 MC5 12 3/16 MEDIUM GRINDER PLATE (3/16”) sales@alfaco.com.
8 MC5 12 5/16 COARSE GRINDER PLATE (5/16”)
9 MC5 KNIFE CHOPPER KNIFE - S/S #12, STAR SHAPED
10 MC5 FEED SCREW ASSEM S/S WORM (INCLUDES WASHER)
11 MC5 CYLINDER CHOPPER CYLINDER ALONE Common replacement
parts are in the table
11A MC5 CCA ASSEMBLY (INCLUDES CYLINDER, RING, at left. All parts are
WORM, PAN, STOMPER, KNIFE & PLATE) available: If the part
12 MC5 BODY WHITE PLASTIC BODY you need is not listed,
13 MC5 FEET FEET (PKG / 4) please refer to the
14 MC5 KUBBE SET PLASTIC KUBBE KIT part # on the sche-
matic.
15 MC5 CORD POWER CORD
16 MC5 RING TIGHTENING RING
MC5 STUFFING TUBE SET SAUSAGE STUFFING TUBE SET
WITH KUBBE

NOT SHOWN: MC5 BOLT SEAT, (BOLT SEAT), MC5 WASHER KIT (WASHERS, WORM), MC5
GEAR PL (PLASTIC GEAR); MC5 GEAR MTL (METAL GEAR); MC5 STUFFING TUBE SET
