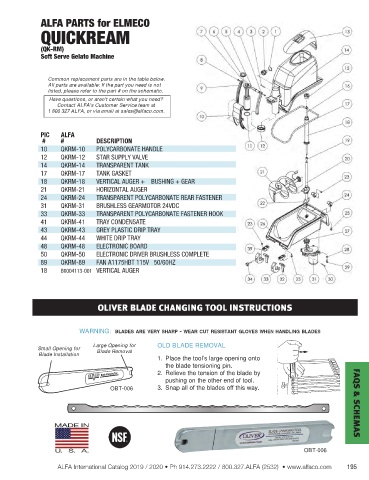

Page 201 - Alfa International 2023 Catalog

ALFA PARTS for ELMECO
QUICKREAM

(QK-RM)
Soft Serve Gelato Machine

Common replacement parts are in the table below.
All parts are available: If the part you need is not
listed, please refer to the part # on the schematic.
Have questions, or aren't certain what you need?
Contact ALFA's Customer Service team at
1 800 327 ALFA, or via email at sales@alfaco.com.

Pic AlfA
# # DeScriPtion
10 QKRM-10 POLYCARBONATE HANDLE
12 QKRM-12 STAR SUPPLY VALVE
14 QKRM-14 TRANSPARENT TANK
17 QKRM-17 TANK GASKET
18 QKRM-18 VERTICAL AUGER + BUSHING + GEAR
21 QKRM-21 HORIZONTAL AUGER
24 QKRM-24 TRANSPARENT POLYCARBONATE REAR FASTENER
31 QKRM-31 BRUSHLESS GEARMOTOR 24VDC
33 QKRM-33 TRANSPARENT POLYCARBONATE FASTENER HOOK
41 QKRM-41 TRAY CONDENSATE
43 QKRM-43 GREY PLASTIC DRIP TRAY
44 QKRM-44 WHITE DRIP TRAY
48 QKRM-48 ELECTRONIC BOARD
50 QKRM-50 ELECTRONIC DRIVER BRUSHLESS COMPLETE
89 QKRM-89 FAN A1175HBT 115V 50/60HZ
18 B0004113-001 VERTICAL AUGER

OLIVER BLADE CHANGING TOOL INSTRUCTIONS

WARNING: blades are very sharp - wear cut resistant gloves when handling blades

Large Opening for OLD BLADE REMOVAL
Small Opening for Blade Removal
Blade Installation
1. Place the tool’s large opening onto
the blade tensioning pin.
2. Relieve the tension of the blade by
pushing on the other end of tool.
OBT-006 3. Snap all of the blades off this way. FAQS & SCHEMAS

OBT-006
